Home ? Product Center ? Other ? Switch ? Tactile Switch ? R0190 ?

The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

Dust-proof Tactile Switches R0190

• Contact Resistance：≤50mΩ

• Insulation Resistance：≥100MΩ

• Dielectric Strength：250V.AC.1Min

• Operating Force：250±30gf

• Rated Values：0.5A/12V

• Climate Grade：-30℃ ~70℃

• Travel：0.30±0.02

• Life：5,000,000cyces-10,000,000cyces

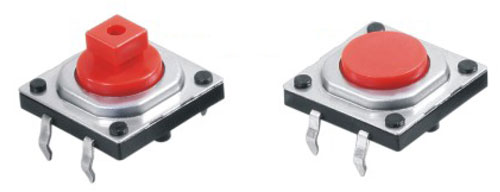

Dust-proof Tactile Switches R0190 Figure

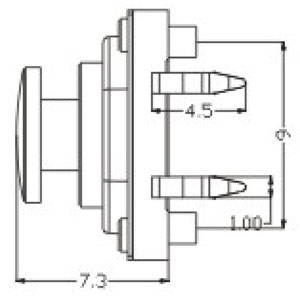

Dust-proof Switches R0190 Structure Diagram

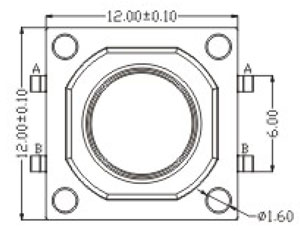

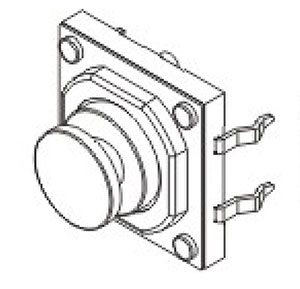

Tactile Switches R0190 Structure Diagram

Part Number	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Travel	Life	Rated Values	Climate Grade	Download
R0190-H-3-R-V-B	≤50mΩ	≥100MΩ	250V.AC.1Min	250±30gf	0.30±0.02	5,000,000cyces-10,000,000cyces	0.5A/12V	-30℃ ~70℃	NULL
R0190-H-1-R-V-B	≤50mΩ	≥100MΩ	250V.AC.1Min	250±30gf	0.30±0.02	5,000,000cyces-10,000,000cyces	0.5A/12V	-30℃ ~70℃	NULL
R0190-M-2-R-V-R	≤50mΩ	≥100MΩ	250V.AC.1Min	250±30gf	0.30±0.02	5,000,000cyces-10,000,000cyces	0.5A/12V	-30℃ ~70℃	NULL
R0190-H-2-R-V-B	≤50mΩ	≥100MΩ	250V.AC.1Min	250±30gf	0.30±0.02	5,000,000cyces-10,000,000cyces	0.5A/12V	-30℃ ~70℃	NULL
