The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

Sealed Type Tactile Switches RTS(M)(H)W1/2/6/8

• Rating：12VDC 50mA

• Travel：0.5±0.3mm

• Life：1,000,000 cycles

• Contact Resistance：100mΩ MAX Initial

• Insulation Resistance：100mΩ min. 100VDC

• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN

• Operating Force：250±50gf

• Waterproof Grade：IP67

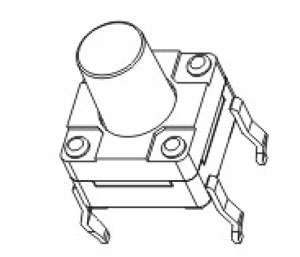

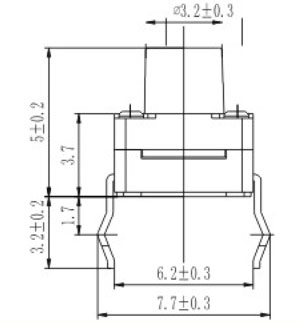

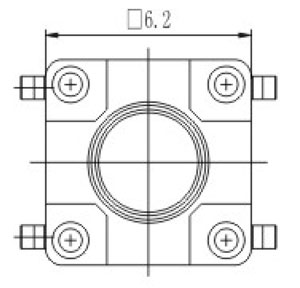

Sealed Type Tactile Switches Structure Diagram

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Life	Waterproof Grade	Travel	Download
RTSHW6-050-□-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	250±50gf	1,000,000 cycles	IP67	0.5±0.3mm	NULL
RTSMW6-050-□-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	250±50gf	1,000,000 cycles	IP67	0.5±0.3mm	NULL
RTSHW6T-010-□-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	250±50gf	1,000,000 cycles	IP67	0.5±0.3mm	NULL
RTSMW6T-012-□-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	250±50gf	1,000,000 cycles	IP67	0.5±0.3mm	NULL
RTSHW8-010-□-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	250±50gf	1,000,000 cycles	IP67	0.5±0.3mm	NULL
RTSHW10-013-□-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	250±50gf	1,000,000 cycles	IP67	0.5±0.3mm	NULL
RTSMW12-060-□-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	250±50gf	1,000,000 cycles	IP67	0.5±0.3mm	NULL
RTSHW12-060-□-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	250±50gf	1,000,000 cycles	IP67	0.5±0.3mm	NULL
