輕觸開關又叫按鍵開關，使用時以滿足操作力的條件向開關操作方向施壓開關功能閉合接通，當撤銷壓力時開關即斷開，其內部結構是靠金屬彈片受力變化來實現通斷的。

輕觸開關由：嵌件、基座、彈片、按鈕、蓋板組成其中防水類輕觸開關在彈片上加一層聚酰亞胺薄膜，輕觸開關有接觸電阻荷小、精確的操作力誤差、規格多樣化等方面的優勢。

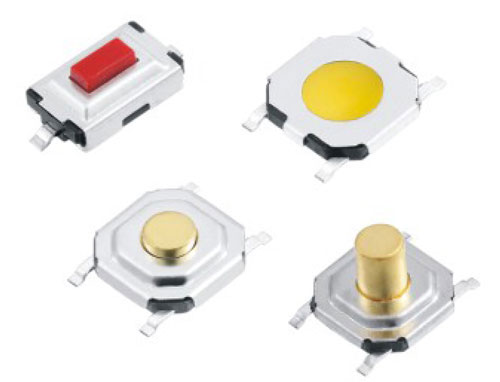

輕薄輕觸開關RZTM

• Rating：12VDC 50mA

• Travel：0.25mm

• Life：100,000~300,000 cycles

• Contact Resistance：100mΩ MAX Initial

• Insulation Resistance：100mΩ min. 100VDC

• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN

• Operating Force：A=180gf B=260gf

• Operating Temperature：-30℃ ~80℃

• Height(ZTM-5)：15=1.5mm 17=1.7mm
20=2.0mm 43=4.3mm

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Life	Operating Temperature	Height(ZTM-5)	Travel	PDF下載
RZTM-385	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
RZTM-3307	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
RZTM-3309	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
RZTM-3312	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
RZTM-325	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
RZTMU-325	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
RZTM-415	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
RZTMF-5	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
RZTMR-5	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
RZTMS-5	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
RZTMU-5	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	暫無
