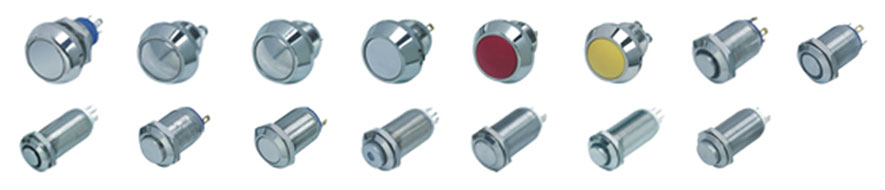

• RD12-A1 • RD12-A3
• RD12-A6 • RD12-A7 • RD12-A8 • RD12-A5
• RD12-B1 • RD12-B2
• RD12-C1 • RD12-C2
• RD12-D1 • RD12-D2
• RD12-D4 • RD12-D5
• RD12-D6
|
 |
| Part Number | Mounting Hold Size | Switch Rating | Operation Types | Head Shape | Enclosure Material | Degree of protection | Lamp Type | Head Color | Head Type | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|---|
| RD12-A1 | φ12mm | 2A/36VDC | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | / | 暫無 |
| RD12-A3 | φ12mm | 2A/36VDC | Resetable | Round | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | / | 暫無 |
| RD12-A6 | φ12mm | 2A/36VDC | Resetable | Round | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | / | 暫無 |
| RD12-A7 | φ12mm | 2A/36VDC | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | / | 暫無 |
| RD12-A8 | φ12mm | 2A/36VDC | Resetable | Round | Nickel plated brass/Stainless stell | IP65,IK08 | / | R/O/Y/G/B/W | / | 暫無 |
| RD12-A5 | φ12mm | 2A/36VDC | Resetable | Round | Nickel plated brass/Stainless stell | IP65,IK08 | / | R/O/Y/G/B/W | / | 暫無 |
| RD12-B1 | φ12mm | 2A/36VDC | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | / | 暫無 |
| RD12-B2 | φ12mm | 2A/36VDC | Resetable | High Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | / | 暫無 |
| RD12-C1 | φ12mm | 2A/36VDC | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK08 | Ring Illuminated | / | / | 暫無 |
| RD12-C2 | φ12mm | 2A/36VDC | Resetable | High Flat | Nickel plated brass/Stainless stell | IP65,IK08 | Ring Illuminated | / | / | 暫無 |
| RD12-D1 | φ12mm | 2A/36VDC | Self-locking | Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | / | 暫無 |
| RD12-D2 | φ12mm | 2A/36VDC | Self-locking | High Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | / | 暫無 |
| RD12-D4 | φ12mm | 2A/36VDC | Self-locking | High Flat | Nickel plated brass/Stainless stell | IP67,IK08 | Dot Illuminated | / | / | 暫無 |
| RD12-D5 | φ12mm | 2A/36VDC | Resetable | Flat | Nickel plated brass/Stainless stell | IP67,IK08 | / | / | Ring Illuminated | 暫無 |
| RD12-D6 | φ12mm | 2A/36VDC | Resetable | High Flat | Nickel plated brass/Stainless stell | IP67,IK08 | / | / | Ring Illuminated | 暫無 |
